Angle Altitude Control Valves

Features

When the level lowers, the floating valve opens to supply water; there is pressure inside the water in the pipe to hold the piston inside the valve up, then the sealing-face opens and the valve supplies water. When the level gets to the controlled line, the floating valve closes and the piston moves downwards to closes the sealing-face, at last the vale stops the water supply.

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

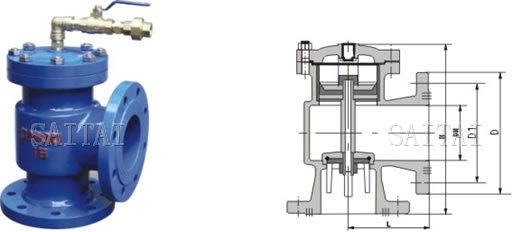

Angle Altitude Control Valves

Dimensions

DN 40 50 65 80 100 125 150 200 250 300 350
D 145 160 180 195 215 245 280 335 405 460 520
D1 110 125 145 160 180 210 240 295 355 410 470
L 107 115 125 135 146 165 180 215 255 285 325
H 235 243 258 280 307 358 400 490 576 663 750

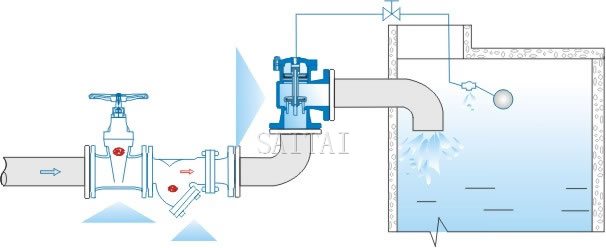

Typical installation

Typical installation of Angle Altitude Control Valves with Diaphragm actuated
