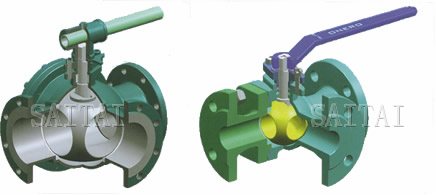

Three-Way Ball Valves

Features

Floating 3 Way
Floating 3 Way

Size: 1/2"~8"
Class: 150 / 300 Lb
Two-Piece Cast Body
Floating Ball, Full Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector

Materials

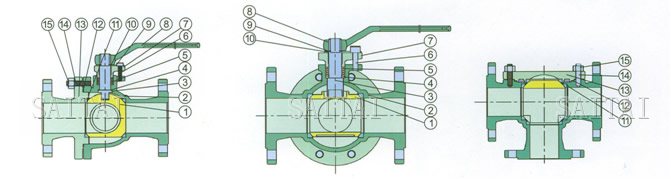

Materials of Three-Way Ball Valves
Materials of Three-Way Ball Valves
No. Part Material
1 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
2 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
3 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
4 Thrust Washer PTFE
5 Packing PTFE Graphite
6 Screw ASTM A193-B7, B8
7 Gland Flange A216-WCB A351-CF8
8 Lever A216-WCB
9 Limited Plate 1015+Cr. Carbon Steel+Cr.
10 Retainer Carbon Steel
11 Seat PTFE RTPFE PEEK PPL
12 Gasket Stainless Steel+Graphite S.S.316+Graphite
13 Bonnet A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
14 Stud ASTM A193-B7, B7M, B8, B8M
15 Nut ASTM A194-2H, 2HM, 8, 8M

ASME Pressure Class 150 / 300 Lb-PTFE RTPFE PEEK PPL (Soft) Seated-Flanged Ends

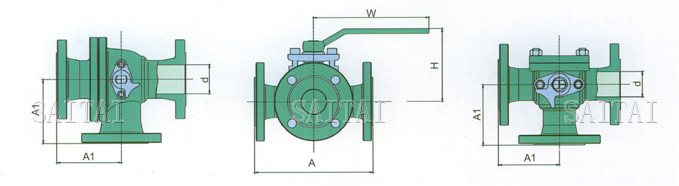

Four(4) Way-Cast Body-Floating and Trunnion Mounted-Full Bore-Dimensions and Weights

Dimensions and Weights of Four-Way Ball Valves
Size d A A1 H W
in mm mm mm mm mm
1/2 13 150 75 90 140
3/4 19 150 75 90 140
1 25 180 90 102 155
1-1/4 38 200 100 115 250
1-1/2 48 220 110 135 250
2 50 240 120 140 350
2-1/2 65 260 130 155 350
3 78 280 140 185 420
4 100 320 160 210 700
5 125 380 190 270 1000
6 148 440 220 305 1300
8 198 550 275 335 1800

Three-Way Ball Valves Related Products
