Home > products > Valve > Instrumentation Ball Valves

One Piece (1-PC), Switching (3-Way), Instrumentation Ball Valves

Pressure: PN 6.4 MPa
Material: 304SS 316SS 20#,
One Piece (1-PC), Ball
Tube fitting and Female NPT End
Switching (3-Way)

PN 6.4 MPa- Tube Fitting Nuts- Switching (3-Way)-Dimensions:

PN 6.4 MPa- Tube Fitting Nuts- Switching (3-Way)-Dimensions
PN 6.4 MPa- Tube Fitting Nuts- Switching (3-Way)-Dimensions
SPECIFICATION Do L L1 H
DN3 Φ6 60 38 32
DN6 Φ8 65 38 42
DN10 Φ10 75 38 50

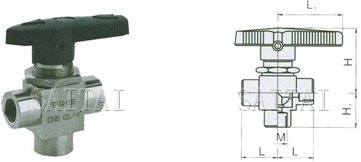

PN 6.4 MPa- Female NPT Ends- Switching (3-Way)-Dimensions:

PN 6.4 MPa- Female NPT Ends- Switching (3-Way)-Dimensions
PN 6.4 MPa- Female NPT Ends- Switching (3-Way)-Dimensions
SPECIFICATION L L1 M H H1
DN3 20 30 M12×1.25 32 20
DN3 20 30 ZG1/8 32 20
DN6 25 38 ZG1/4 42 25

One Piece (1-PC), Switching (3-Way), Instrumentation Ball Valves Related Products

Next:Three Piece (3-PC), High Pressure, Instrumentation Ball Valves

Catalog:Instrumentation Ball Valves

Above:One Piece (1-PC), Instrumentation Ball Valves
